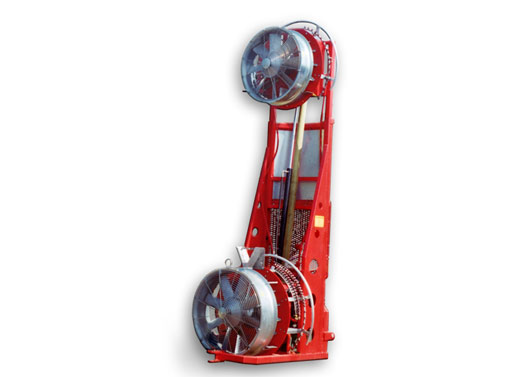

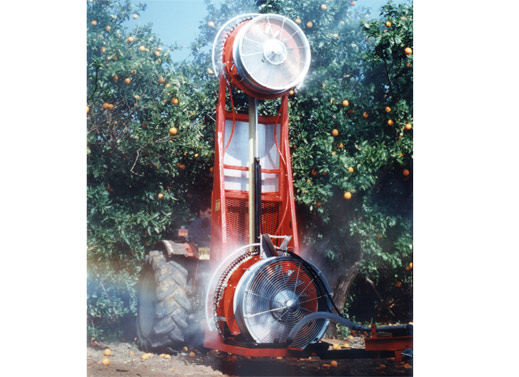

2 Levels air blast orchard sprayer.

Data

  • Top fan: 820 mm. Diameter.
  • Lower Fan: 820 mm. Diameter.
  • Air output at 42 MT/sec.
  • Lifting by hydraulic cylinder to a max height of 3.5 Mt.
  • stainless steel manifold with air outlets + conjet ceramic nozzles + valves
  • Air straightening wings
  • Mechanical fan drive enables individual fan operation.
  • diaphragm pump or piston.
  • Stainless steel trailed tank 1000-3000 liters.

video:
